KML-2XXXBC SERIES
Cross - Mark LASER PROJECTOR
Feature：
● Japan's industrial-grade laser diode
● Industrial design, high stability
● AVR+APC Control Circuit
● Long life
SPECIFICATIONS：

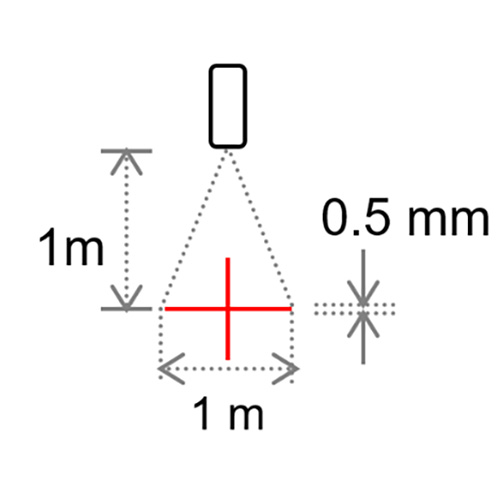

Model：KML-2501BC
Wavelength：630 ~ 650 nm RED
Output Power：< 3 mW
Project Distance：1 m
Line Length：1 m each line
Line Thickness：0.5 mm
Focus Fixed
Input Voltage：5 ~ 8 VDC
Operating Current：< 70 mA
Operating Temp.：– 10 ~ +50 °C
Safety Class：Class Ⅲa
IP Class：IP 62
Lifetimes：> 20,000 hr
Dimensions：D 15 X L 56 (mm)
Weight：22 ± 2 g

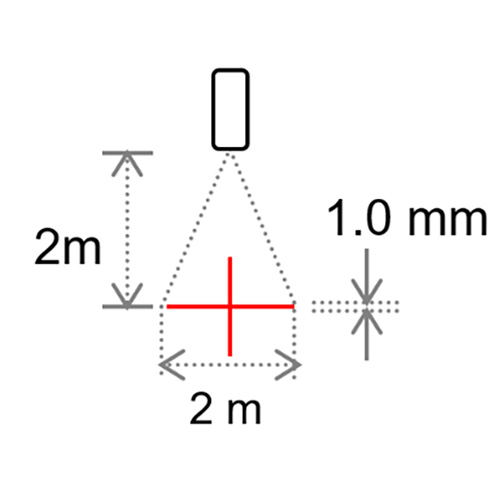

Model：KML-2503BC
Wavelength：630 ~ 650 nm RED
Output Power：< 5 mW
Project Distance：2 m
Line Length：2 m each line
Line Thickness：1 mm
Focus Fixed
Input Voltage：5 ~ 8 VDC
Operating Current：< 70 mA
Operating Temp.：– 10 ~ +50 °C
Safety Class：Class Ⅲa
IP Class：IP 62
Lifetimes：> 20,000 hr
Dimensions：D 15 X L 56 (mm)
Weight：22 ± 2 g

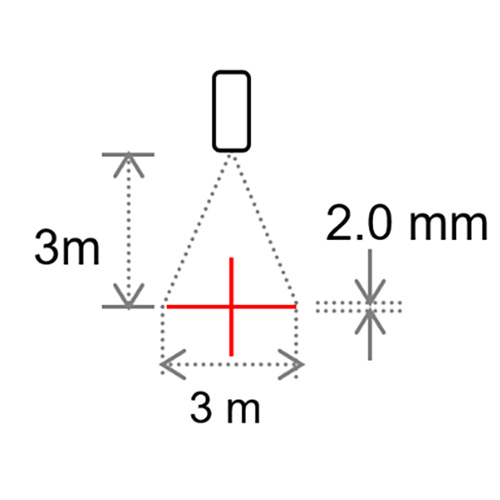

Model：KML-2505BC
Wavelength：630 ~ 650 nm RED
Output Power：< 8 mW
Project Distance：3 m
Line Length：3 m each line
Line Thickness：2 mm
Focus Fixed
Input Voltage：5 ~ 8 VDC
Operating Current：< 70 mA
Operating Temp.：– 10 ~ +50 °C
Safety Class：Class Ⅲb
IP Class：IP 62
Lifetimes：> 20,000 hr
Dimensions：D 15 X L 56 (mm)
Weight：22 ± 2 g
Model：KML-2XXXBC-24V
Wavelength：630 ~ 650 nm RED
Output Power：3 / 5 / 8 mW
Project Distance：1 / 2 / 3 m
Line Length：1 / 2 / 3 m each line
Line Thickness：0.5 / 1 / 2 mm
Focus Fixed
Input Voltage：24 VDC ± 10%
Operating Current：< 70 mA
Operating Temp.：– 10 ~ +50 °C
Safety Class：Class Ⅲa、Class Ⅲb
IP Class：IP 62
Lifetimes：> 20,000 hr
Dimensions：D15 X L76 (mm)
Weight：32 ± 2 g
Applications：
● Garment processing
● Metal working
● Paper processing
● Sewing processing
● Bicycle processing
● Print processing
● Golf processing
Remarks：
1.The line length and line width of the
projection will vary depending on the
projection distance, angle, material,
color or illumination.
2.Special specifications can be requested.
Example：
 |
